Translating text in DXF/DWG files
Thread poster: Kevin Fulton
Kevin Fulton  Identity Verified
United States
Local time: 00:47
German to English
Aug 24, 2011

Dear Colleagues,
A direct client has approached me with a project involving translation of drawings as well as standard texts. Some files are in AutoCad native format; others are in STEP (.stp) format that I assume can be exported to DXF/DWG format. I have an old Corel drawing program that can be used on DWG files, but it was quite clunky.

Does anyone have experience efficiently translating such files (or their exports into a CAT-friendly format using CAT tools)?

I'm especially interested in hearing from users of TranslateCAD.
http://www.translationtospanish.com/cad/about.htm

This program allegedly allows translating text in DFX files using a CAT tool. Any users out there?

Thanks, Kevin

PS I've seen older posts on this, but I was curious whether any advances had been made in the past 2 years. I should mention that I don't own AutoCAD, nor do I want to buy it for this project.

[Edited at 2011-08-24 19:00 GMT]


Direct link Reply with quote


Igor Kmitowski  Identity Verified
Poland
Local time: 06:47
English to Polish
+ ...
CafeTran and AutoCad DXF files Aug 24, 2011

Hello Kevin,

Take a look at CafeTran which supports Autocad dxf files. You can download the trial version from here: http://www.cafetran.republika.pl/download.html and check if it meets your requirements.

Igor


Direct link Reply with quote

Kevin Fulton  Identity Verified
United States
Local time: 00:47
German to English
TOPIC STARTER
CafeTran Aug 27, 2011

Igor Kmitowski wrote:

Hello Kevin,

Take a look at CafeTran which supports Autocad dxf files. You can download the trial version from here: http://www.cafetran.republika.pl/download.html and check if it meets your requirements.

Igor


Thanks, Igor. I'll look into this. The client informs me that his department can't do anything with STEP files, either.


Direct link Reply with quote


Alexmg86
Russian Federation
Local time: 07:47
converter Sep 9, 2015


I'm especially interested in hearing from users of TranslateCAD.
http://www.translationtospanish.com/cad/about.htm


I try this program. a lot of the text is not exported .
now I am doing online converter http://dwg2txt.com/


Direct link Reply with quote

Kevin Fulton  Identity Verified
United States
Local time: 00:47
German to English
TOPIC STARTER
Thanks for responding Sep 9, 2015

The job is long gone, and I haven't had any similar requests since that time.

I'm always amazed at responses to queries from long ago. I've had responses to a query from ten years ago. I'm impressed by how interested people are in solving problems, even "ancient" ones.


Direct link Reply with quote

xxx2nl  Identity Verified
Netherlands
Local time: 06:47
New download link Sep 9, 2015

Igor Kmitowski wrote:

Hello Kevin,

Take a look at CafeTran which supports Autocad dxf files. You can download the trial version from here: http://www.cafetran.republika.pl/download.html and check if it meets your requirements.

Igor


The new download link: https://www.cafetran.com/#download

For translating AutoCAD, please also see: http://cafetran.wikidot.com/autocad


Direct link Reply with quote

Stanislav Okhvat
Local time: 08:47
English to Russian
Using TransTools for AutoCAD Sep 9, 2015

Hello,

To translate DWG files, you can use TransTools for AutoCAD (requires AutoCAD):
http://www.translatortools.net/autocad-about.html

It has lots of options and best of all it's free.

Best regards,
Stanislav Okhvat
TransTools – Useful tools for every translator


Direct link Reply with quote

CafeTran Training
Netherlands
Local time: 06:47
AutoCAD: Filtering on layers May 21, 2016

As of April 2016, CafeTran supports filtering on layers in AutoCAD files:

https://cafetran.freshdesk.com/support/discussions/topics/6000035880


Direct link Reply with quote


Ben Senior  Identity Verified
Germany
Local time: 06:47
German to English
AutoCAD source documents? May 22, 2016

When you say AutoCAD source documents do you mean DWG files, which are the only type of AutoCAD source documents? Or do you mean DXF files, which are not AutoCAD source documents but a drawing exchange format that can be created and read by almost all CAD and GIS programs and software and also other types of software?

What is meant by filtering on layer? Does this mean just translating the text on certain layers? I could see this as a disadvantage as some of the drawings that I have had contain many hundred layers and manually selecting layers would be somewhat daunting and prone to errors. Are you also able to translate the layer names?

What type of text entities can be translated?

Ben


Direct link Reply with quote

CafeTran Training
Netherlands
Local time: 06:47
DXF May 22, 2016

From the The 261st Tool Box Journal:

So now, once you select a DXF file and open Project configuration, you can select Filter options and then choose only the Filter layers that need to be translated.

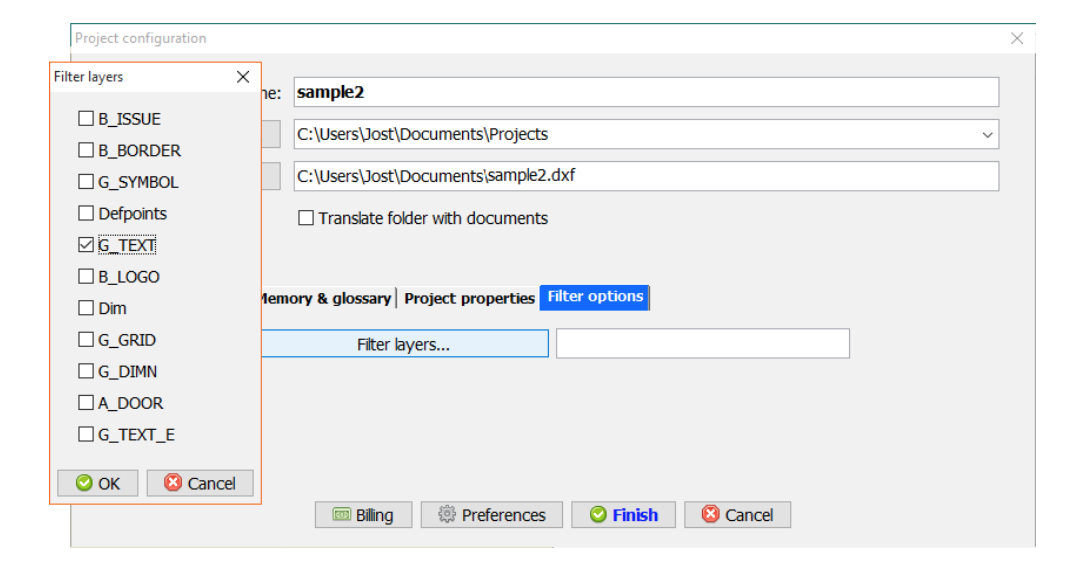

It includes this image:



I assume that if you don't make any selection, all layers will be offered for translation. Regarding the renaming of layers: I'll draw the attention of the developer to this thread so that he can answer your question.

[Edited at 2016-05-22 09:52 GMT]


Direct link Reply with quote


Ben Senior  Identity Verified
Germany
Local time: 06:47
German to English
Text objects? May 22, 2016

Thanks for the information, it could be a useful tool for certain drawings. Perhaps a select all button would avoid any confusion.

It would be more interesting to see what text objects are extracted for translation. As well as the obvious ones there are some that are not normally extracted from such apps, for example XData or text embedded in nested blocks.

Ben


Direct link Reply with quote
